KVST category 6 4-pair F/FTP cable supports channel performance exceeding ANSI/TIA and ISO/IEC category 6 requirements. This cable uses a foil screened design consisting of plus an overall foil shield. When combined with our shielded 6 connectivity, the end result is a channel capable of supporting 10GBASE-T operation over 100-meter, 4-connector topologies. In addition, the fully shielded construction ensures virtually zero alien crosstalk

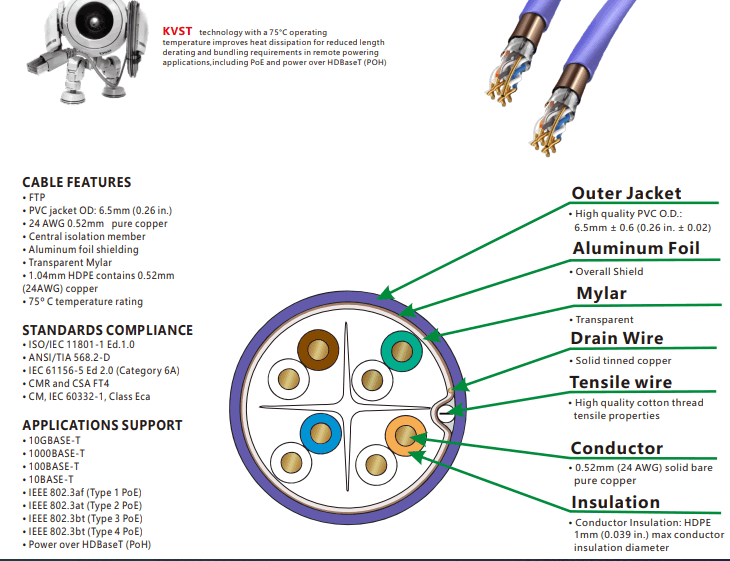

CABLE FEATURES • FTP • PVC jacket OD: 6.5mm (0.26 in.) • 24 AWG 0.52mm pure copper • Central isolation member • Aluminum foil shielding • Transparent Mylar • 1.04mm HDPE contains 0.52mm (24AWG) copper • 75º C temperature rating STANDARDS COMPLIANCE • ISO/IEC 11801-1 Ed.1.0 • ANSI/TIA 568.2-D • IEC 61156-5 Ed 2.0 (Category 6A) • CMR and CSA FT4 • CM, IEC 60332-1, Class Eca APPLICATIONS SUPPORT • 10GBASE-T • 1000BASE-T • 100BASE-T • 10BASE-T • IEEE 802.3af (Type 1 PoE) • IEEE 802.3at (Type 2 PoE) • IEEE 802.3bt (Type 3 PoE) • IEEE 802.3bt (Type 4 PoE) • Power over HDBaseT (PoH) Ordering Information KV (OT)0526FC 305m (10
